Aries 2.9

Aries Panel installed at the Landers Center home of the

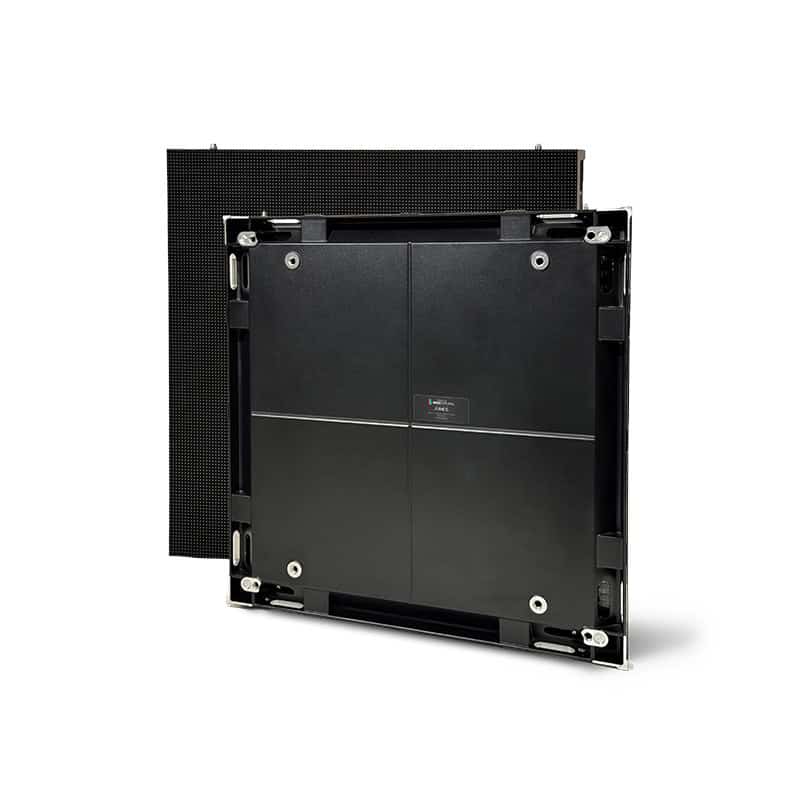

Aries 500x500

About Aries 2.9

The Aries Series Panels are designed to streamline custom installations without compromising quality or performance. Featuring precision-engineered, cast aluminum frames, Aries panels offer a lightweight yet rugged solution that reduces structural load while enhancing ease of integration. Whether you’re building a wall or crafting a unique layout, the Aries system is built to make the job simple and cost-effective.

Available in 2.9mm and 3.9mm pixel pitches, the Aries Series delivers sharp, reliable visuals in a compact 250mm x 250mm module format. Frame sizes of 500mm x 500mm and 1000mm x 500mm provide flexible options for a wide range of design requirements. When maintenance is needed, quick repairs can be made with common tools—no special equipment, no delays.

Stocked, affordable, and built for the long haul, the Aries Series Panels are one of our most economical and dependable solutions for custom installations that demand both performance and practicality.

download spec sheet

What's under the hood

  • Pixel Pitch: 2.9mm
  • Pixel Density: 118,336 Pixels/M2
  • LED Type: SMD
  • Module Dimensions: 250mm X 250mm
  • Brightness: 1,200 NITS
  • Best Viewing Distance: 9 Feet
  • Avg Energy Consumption: 60W
  • IP Rating: IP43
  • Refresh Rate: 3,840Hz
  • LED Lifetime: 100,000 Hours

THE UBERGIST

Clarification of the technical speak

An UBER LED is a configuration of Red, Green and Blue, Light Emitting Diodes combined together to create a high-quality,
full color display.

Pixel pitch, measured in milimeters, is simply the distance between the center point of each LED pixel cluster.
Essentially, the shorter the distance between each cluster, the higher the resolution of the display.

Pixel density refers to the amount of pixels contained within a certain area. In Uber’s case, it is the amount of
pixels per square meter (m2). The amount of pixels within each square meter panel is indicative of the displayʼs resolution.

Pixel configuration refers to the type of LED module used within a display. SMD is a single module that contains the
Red, Green, Blue light elements within a single unit, allowing for closer pixel pitch and increased pixel density.

The IP rating refers to the LED displays’ level of protection from environmental elements. Click here for more information on IP ratings.

The refresh rate is the amount of frames the LED can display per second. The refresh rate is measured in Hertz, which is
simply one second.

The brightness of the display is measured in Nits per square meter (nit/m2). A Nit is simply a measurement of Luminance.
The more Nits, the higher capacity of brightness the display has.simply one second.
